What Makes a Torch Intrinsically Safe? Understanding IECEx

In workplaces where flammable gas, vapour, mist or combustible dust may be present, an ordinary torch can introduce an ignition risk. A torch used in these areas must be selected for the site’s hazardous-area classification—not simply because it is rugged, waterproof or described as an industrial light.

This guide explains what “intrinsically safe” means, how IECEx relates to hazardous-area lighting, and what Australian buyers should check before selecting a torch or headlamp.

What does intrinsically safe mean?

Intrinsic safety is a type of explosion protection used for electrical equipment. The equipment and its circuits are designed to limit electrical and thermal energy so they cannot ignite a specified explosive atmosphere under the conditions covered by the certification.

This involves more than operating at a low voltage. The complete design may control stored energy, component temperatures, clearances, battery use and possible fault conditions. The torch must be assessed as a complete product, including the permitted batteries and operating instructions.

A torch is not intrinsically safe merely because it uses LEDs, has a sealed case or runs on batteries. The exact model must carry appropriate certification and markings for the intended hazardous area.

What is IECEx?

IECEx is an international conformity-assessment system for equipment used in explosive atmospheres. It provides a framework for testing, certification and ongoing quality assessment against relevant IEC 60079 standards.

An IECEx certificate helps users verify that a specific product has been assessed for defined types of explosive atmosphere and protection. It does not mean that every product from the same brand, or every visually similar model, has the same approval.

ATEX applies within the European Union, while Australia and New Zealand use standards from the AS/NZS 60079 series and applicable local regulatory and workplace requirements. These systems are related, but buyers should not treat their names as simple substitutes. Confirm what the responsible site, employer or regulator requires.

How to read hazardous-area markings

The product label and certificate can include several pieces of information. These may identify:

• Type of protection: for example, intrinsic safety marked with “Ex i”.
• Equipment protection level: indicating the level of protection and the hazardous zones for which the equipment may be considered.
• Gas or dust group: identifying the types of atmosphere covered.
• Temperature class or maximum surface temperature: showing the permitted temperature limit.
• Ambient temperature range: the conditions in which the certification applies.
• Certificate number and any special conditions: details that should be checked against the certificate and instructions.

The marking must match the site classification. A certificate for one gas group, dust group, temperature class or equipment protection level does not automatically make the torch suitable for every hazardous location.

Where are intrinsically safe torches used?

Certified lighting may be required in industries and tasks such as:

• underground mining and tunnelling;
• oil and gas production, processing and maintenance;
• chemical and petrochemical facilities;
• fuel storage and handling areas;
• confined-space inspection;
• grain, food-processing or other facilities where combustible dust may be present; and
• emergency response in classified hazardous areas.

Not every location within these industries is classified in the same way. The site’s hazardous-area assessment determines the equipment requirements.

What should you check before buying?

1. The exact certificate

Ask for the certificate covering the exact model—not a certificate for a related product or brand. Check the model number on the product, packaging, certificate and supplier information.

2. The complete Ex marking

Compare the equipment protection level, gas or dust group, temperature classification and ambient range with the site requirements.

3. Approved batteries

Some certified torches are approved only with specified battery types or models. Substituting another battery can place the equipment outside its certified configuration. Follow the product instructions exactly.

4. Light output and runtime

Once compliance has been confirmed, compare brightness, beam distance, high and low modes, and runtime. Select a light that can cover the required task and shift duration.

5. Handheld or hands-free use

A handheld torch suits inspection and directed lighting. A headlamp keeps both hands available and may be preferable for maintenance, access work and confined spaces. Helmet compatibility should be checked before use.

6. Environmental protection

Water and dust ingress ratings, impact resistance and chemical compatibility are important for durability, but they are separate from explosion protection. An IP67 waterproof rating, for example, does not by itself indicate intrinsic safety.

Intrinsically safe lighting available from Perfect Image

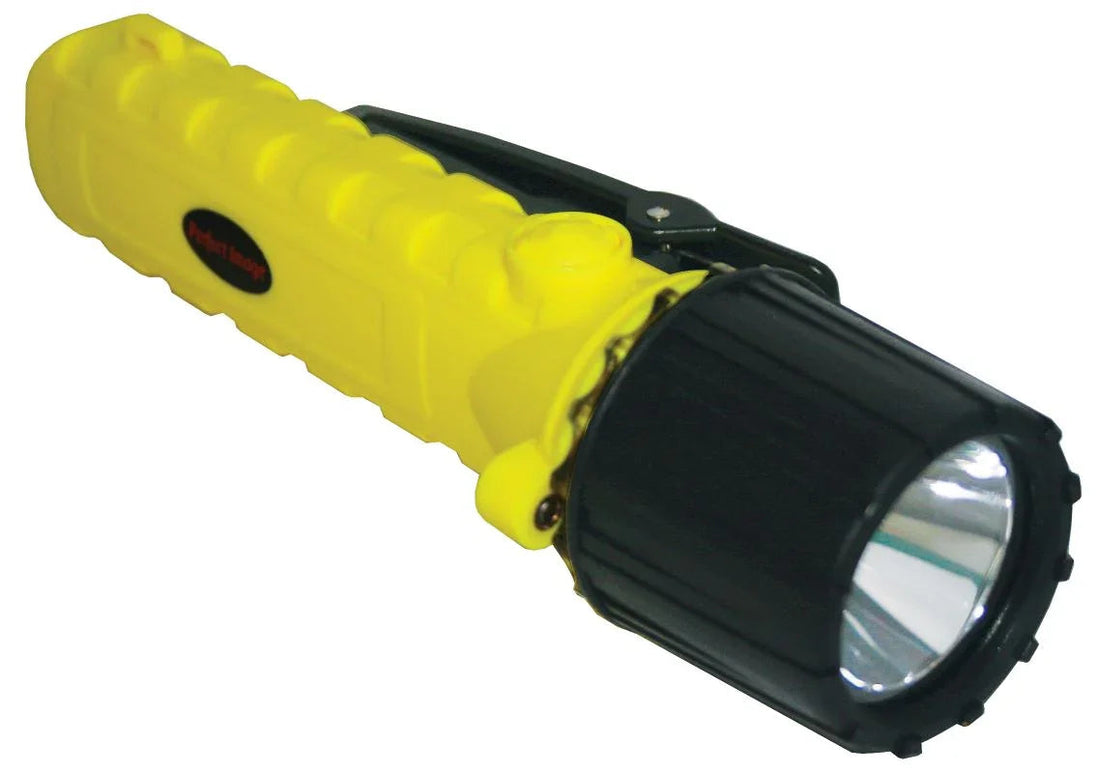

IST-1W Intrinsically Safe Torch

The IST-1W handheld torch uses a high-visibility body with a pocket/belt clip and is listed with UL, ATEX and IECEx approvals to AS/NZS 60079.11. It uses four AA alkaline batteries, and only the battery types specified in the product instructions should be used.

ISH-CREE Intrinsically Safe Headlamp

The ISH-CREE headlamp provides hands-free high and low modes, an adjustable non-slip strap suitable for a hard hat, a sealed battery compartment and IP67 water resistance. It is listed with CSA, ATEX and IECEx approvals to AS/NZS 60079.11 and uses specified AAA alkaline batteries.

Certified mining cap lamps

For mining applications requiring a cap lamp, Perfect Image also supplies certified Wisdom models, including the Wisdom 6A cordless mining cap lamp and the Wisdom KL8M cap lamp. Certification is model-specific; other Wisdom lamps should not be assumed to carry the same approval.

Common mistakes to avoid

• Assuming every LED torch is intrinsically safe.
• Confusing waterproof or impact-resistant construction with Ex certification.
• Relying on a marketing description without checking the model and certificate.
• Using batteries that are not permitted by the certification or instructions.
• Assuming one certified torch is suitable for every gas, dust or hazardous zone.
• Continuing to use damaged equipment without the required inspection or replacement.

Frequently asked questions

Is an IECEx torch automatically suitable for every Australian worksite?

No. The exact certification and marking must match the site classification and workplace requirements. Site approval may also be required before equipment is introduced into a hazardous area.

Are all LED torches intrinsically safe?

No. LED technology can be efficient and relatively cool-running, but intrinsic safety applies only when the complete product has been designed, assessed and certified for the specified explosive atmosphere.

Does waterproof mean intrinsically safe?

No. An IP rating describes protection against dust or water ingress. Explosion protection is a separate assessment and marking system.

Can I use any AA or AAA battery in a certified torch?

Not necessarily. Use only the battery type and model permitted by the certification and manufacturer’s instructions.

What is the difference between an intrinsically safe torch and headlamp?

The main practical difference is how the light is carried. A torch provides handheld directional lighting, while a headlamp offers hands-free operation. Both still require model-specific certification for the intended hazardous area.

Final selection checklist

• Obtain the site’s hazardous-area classification.
• Verify the certificate for the exact model.
• Match the full Ex marking to the site requirements.
• Check special conditions and the approved battery list.
• Compare output, beam, runtime and carrying method.
• Inspect and maintain the light according to workplace procedures.

Browse the Perfect Image intrinsically safe lighting range, or contact us for product documentation before placing a workplace order.
